TruFire ST2/X1
This 50" x 100", 6 printhead UV flatbed is ideal for smaller footprint shops & private operations looking for quick turnaround without loosing print quality.
TruFire LT3/x2
Our mid-size, 8 to 12 printhead, UV flatbed is a great choice for most print shops looking to speed up their grand format and rigid board production.

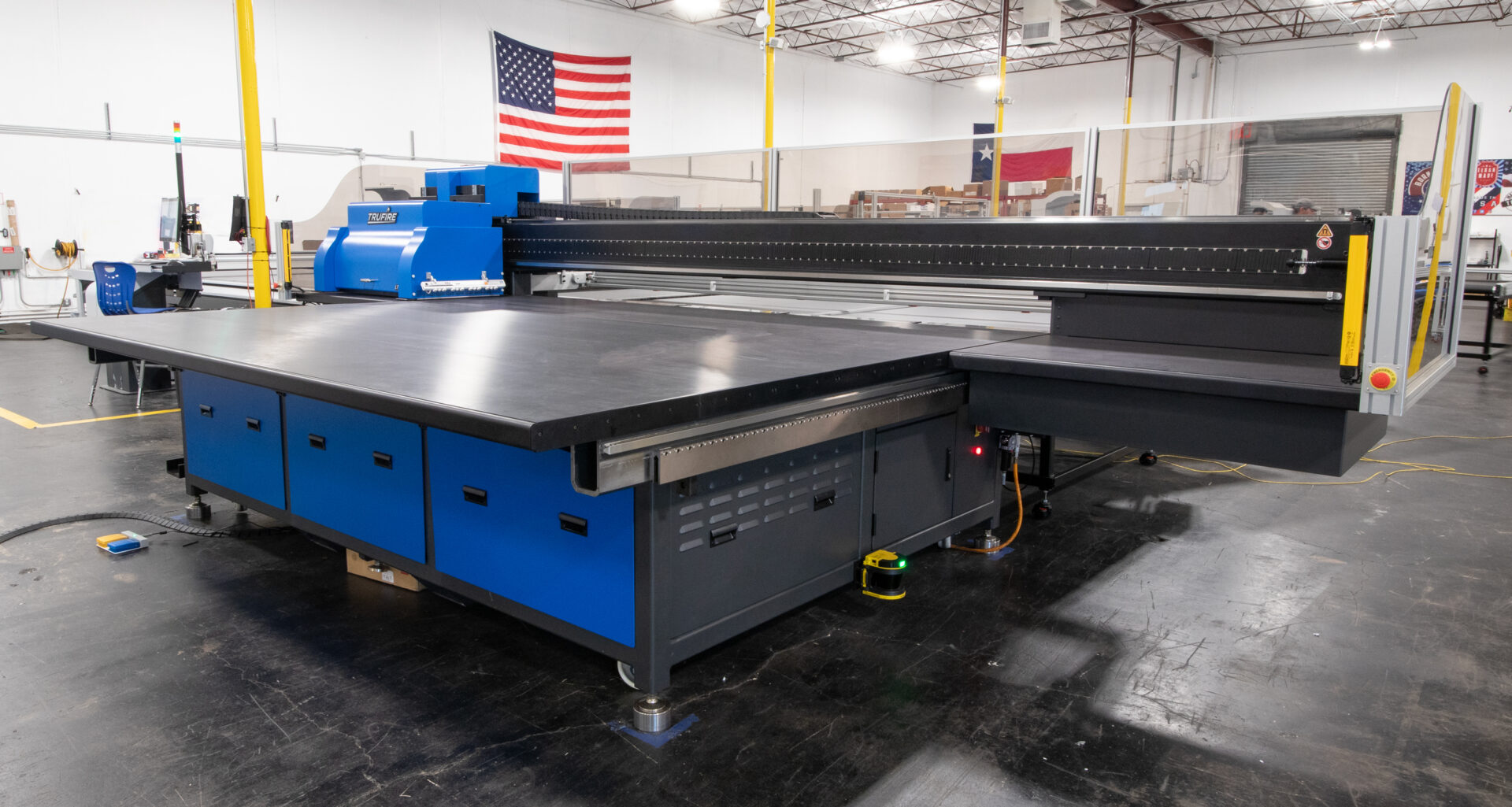

TruFire LT3/x3
Our largest 18 printhead UV flatbed is designed for high capacity, quick turnaround print production houses. Best paired with our automation conveyor system for maximum efficiency.

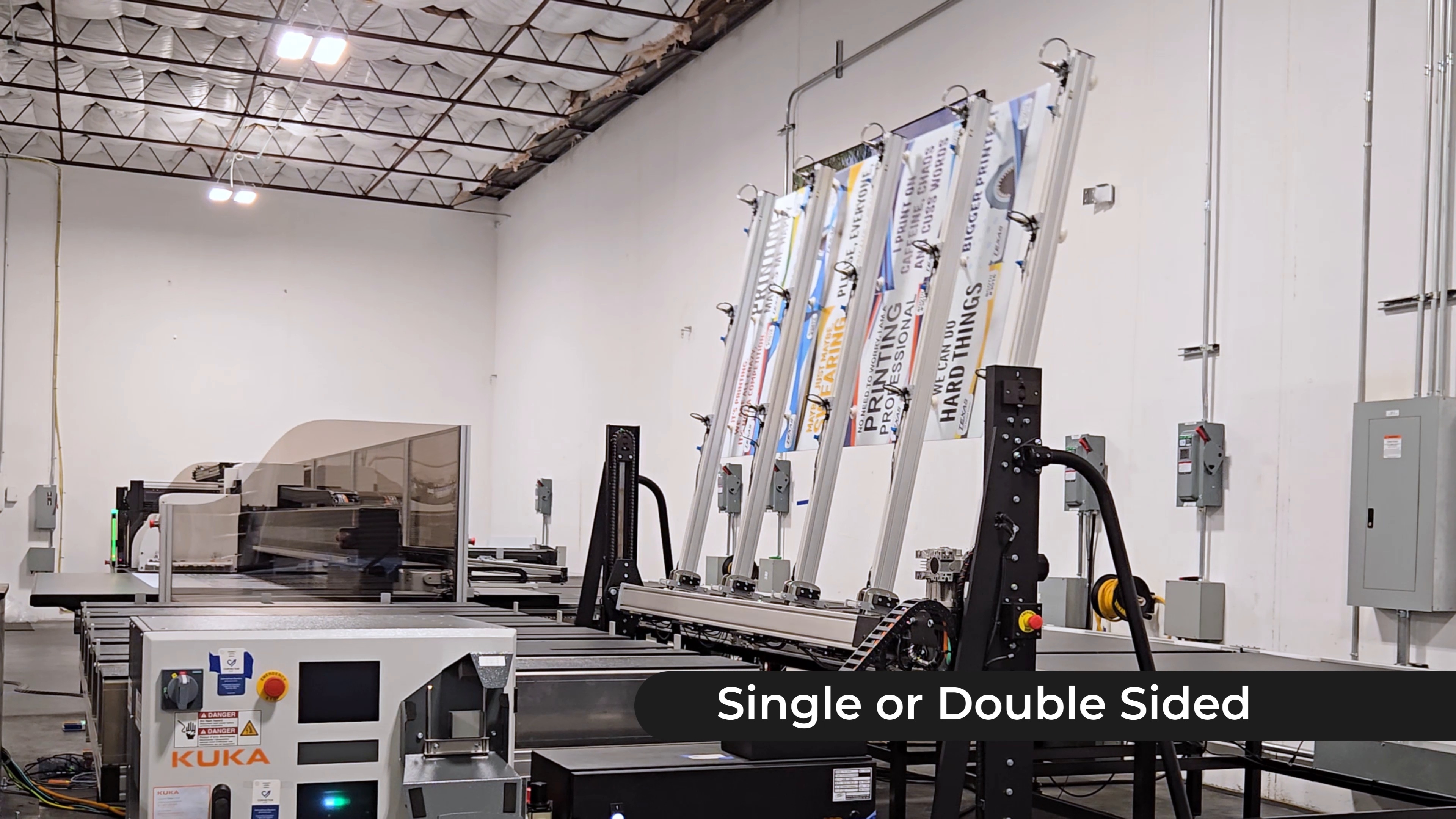

UV Flatbed Automation
All TruFire models come standard with a storable media unloader. Ask us about our available conveyor system to optimize your printing operations and step into full automation!
| Shared Specifications | |||
|---|---|---|---|
| Printer Design | UV True Flatbed Printer | ||
| Print Quality | Up to 1200 dpi | ||
| UV Curing Technology | LED-UV | ||
| Rigid Media Thickness | Up to 6” | ||
| Printing Accuracy | X-Axis (across Bridge): 1 micron Y-Axis: 1 micron both sides of gantry |
||
| Grayscale Technology | 4, 6, 10, and 14 picoliters | ||
| Auto Unloader | Changes sheets of media in less than 10 seconds | ||
| Ink | Cyan, Magenta, Yellow, Black, White, Orange, Gray, Varnish | ||
| Software & RIP Requirements | Onyx Version 22 or greater, Caldera, ErgoSoft, PrintSight | ||
| Network Requirements | 1000 base-T with Dedicated IP Address | ||
| Air Requirements | Pressure: 100-150 psi
15 scfm continuous @ 100-150 psi (vacuum function) 5 scfm peak @ 100-150 psi (Compressed air must be dust and moisture free) |
||
| Environmental Requirements | Temperature: 70-78°F (21-26°C)
Recommended Relative Humidity: 40% - 60% RH Atmosphere: Well Ventilated, Low Dust |
||
| Specifications Per Model | ST2/X1 | LT3/x2 | LT3/x3 |
|---|---|---|---|
| Table Size | 50" x 100" | 5’ x 10’ | |
| Vacuum Sections | Zoned 48" x 96" and 50" x 100" | Zoned 4’ x 8’ and 5’ x 10’ | |
| Printhead Technology | Kyocera Single Row | Kyocera Dual Row Staggered | Kyocera Three Row Staggered |
| Print Speeds | Up to 2,024 sq. ft. per hour (Coro Sign Mode 2 Pass) |
Up to 4,376 sq. ft. per hour (Coro Sign Mode 2 Pass) |
Up to 7,389 sq. ft. hr (Coro Sign Mode 2 Pass) |
| Main Ink Reservoir Capacity | 1.75 liters per Color | Standard: 1.75 liters per Color Optional: 2.75 liters per Color |
2.75 liter per Color |
| Ink Channel Configuration Add. Inks = W/Or/Gray/Var |
6 Printheads (1x) CMYKW + 1 Add. Ink |
8 Printheads (2x) CMYK |
18 Printheads (3x) CMYK + 2 Add. Inks |
| 10 Printheads (2x) CMYK + 1 Add. Ink |
|||
| 12 Printheads (2x) CMYK + 2 Add. Inks |
|||
| Electrical Requirements | Supply voltage: 208 - 240VAC
2 lines plus ground (Single Phase) Power line frequency; 50/60Hz Amperage = 60A |
Supply voltage: 400Y/230VAC
4 wires plus ground (3 Phase, 1 neutral, 1 ground) Phase to neutral = 230VAC; Phase to Phase = 400VAC Not phase sensitive Amperage = 60A Power line frequency; 50/60Hz |
|
| Printer Dimensions (L x W x H) |
204” x 100” x 70” (132” W w/ unloader extended) |
234” x 113” x 70” (143” W w/ unloader extended) |
234” x 127” x 70” (157” W w/ unloader extended) |
| Weight | ~5,000 lbs. | ~6,800 lbs. | ~8,000 lbs. |
